BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals

Name: BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals
Brand: YUE MI
Price: 1 USD

Quality BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals wholesale

Brand Name : YUE MI

Model Number : BIA

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 15/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500/Set/Month

Delivery Time : 5 work days

Packaging Details : Details Carton

Style : Customizable

Temperature Range : -20°C to 120°C

Support : Non-Standard Customization

Origin : CHINA

Sealing : FKM

Warranty : water pump

Leadtime : Fast to Ship

Model : BIA

Traemark : YUEMI

Contact Now

BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals

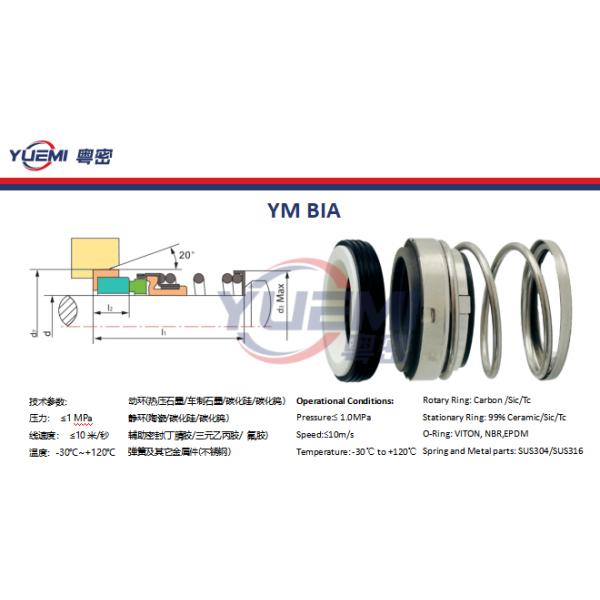

Model	d(mm)	d₃	d₇	l₁	l₃
YM BIA-14	14	27.0	30	23.7	5.0
YM BIA-16	16	28.5	32	26.0	5.0
YM BIA-18	18	30.5	35	30.0	7.5
YM BIA-20	20	34.0	35	29.0	8.0
YM BIA-25	25	39.0	40	33.5	8.0
YM BIA-28	28	42.0	43	33.5	8.0
YM BIA-30	30	44.0	45	34.5	9.0
YM BIA-32	32	47.0	48	42.5	9.0
YM BIA-33	33	47.0	48	42.5	9.0
YM BIA-35	35	49.0	50	42.5	9.0
YM BIA-38	38	54.0	56	42.5	9.0
YM BIA-40	40	56.0	58	42.5	9.0
YM BIA-43	43	59.0	61	46.0	9.5
YM BIA-45	45	62.0	63	47.5	9.5
YM BIA-48	48	64.0	66	47.5	9.5
YM BIA-50	50	66.0	70	47.5	9.5
YM BIA-53	53	69.0	73	50.5	9.5
YM BIA-55	55	72.0	75	50.5	9.5
YM BIA-58	58	80.0	78	51.5	9.5
YM BIA-60	60	80.0	80	51.5	9.5
YM BIA-70	70	90.0	92	56.0	11.0

Performance Capabilities:

Temperature	-30ºC to 200ºC, dependent on the elastomer
Pressure	≤1.0MPa
Speed	≤10m/s
End play/axial float allowance	±0.1mm
Size	14-70MM
Brand	YUEMI
Face	Carbon, SiC, TC
Seat	Ceramic, SiC, TC
Elastomer	NBR, EPDM
Spring	SS304
Metal parts	SS304
Idividual Packing	Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

If the seal is not the one you need, contact us and inform us your pump model or drawing, material, shaft size for quotation. We will advise you and offer you corresponding mechanical seals.
Customized products and OEM is welcomed.
We offer factory price, high quality, fast delivery and best services.
